Azure Boards integration

The following instructions will walk you through enabling the Azure Boards integration for linking Qwiet findings with Azure DevOps work items.

Prerequisites

You must have administrative privileges for Qwiet and Collection Admin privileges for Azure DevOps to set up the integration.

Step 1: Authorize with Azure DevOps

  1. Log into the Qwiet Dashboard and go to Organization Settings. Initiate the authorization flow by clicking the Connect Azure Boards button.

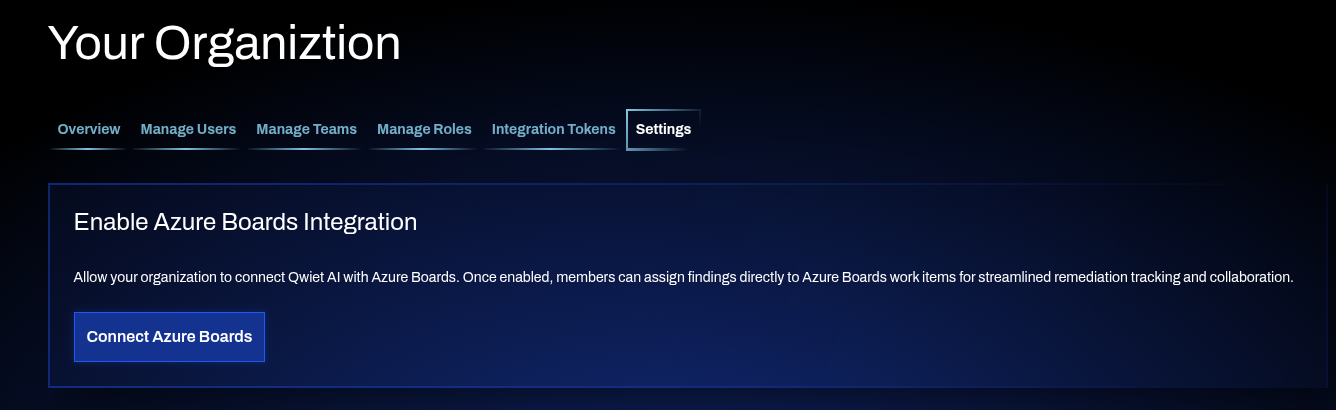

Initiate azureboard authorization
  1. Grant consent to manage Azure Boards for Qwiet Azure App.

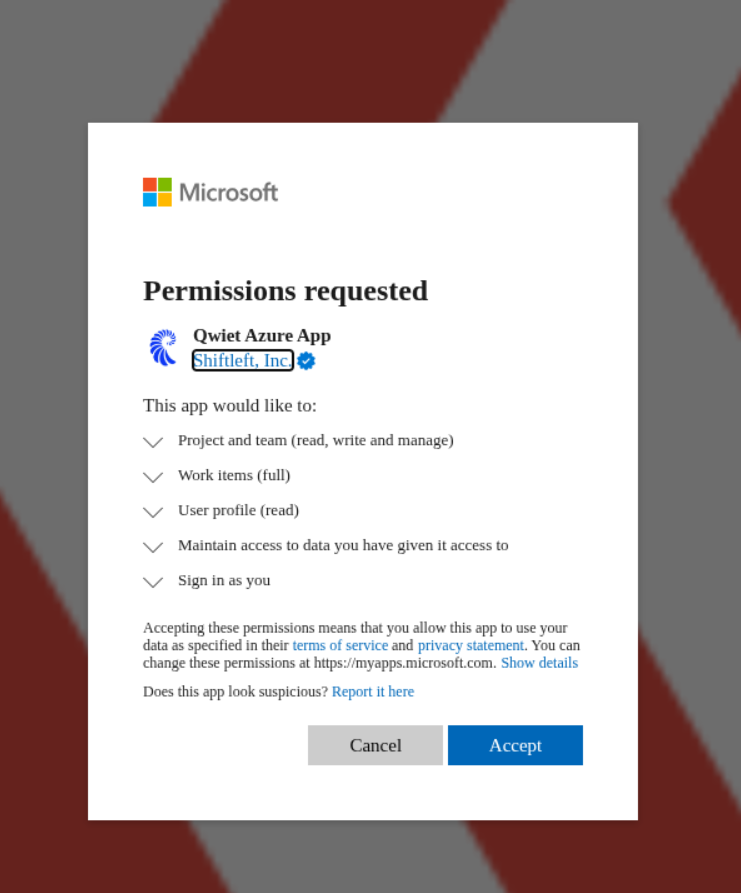

    Grant consent

Step 2: Project Association

You need to configure Azure project mapping with your Qwiet organization’s application. These configurations are used to create work items in selected projects. This can be accomplished on the Qwiet Applications > Settings page.

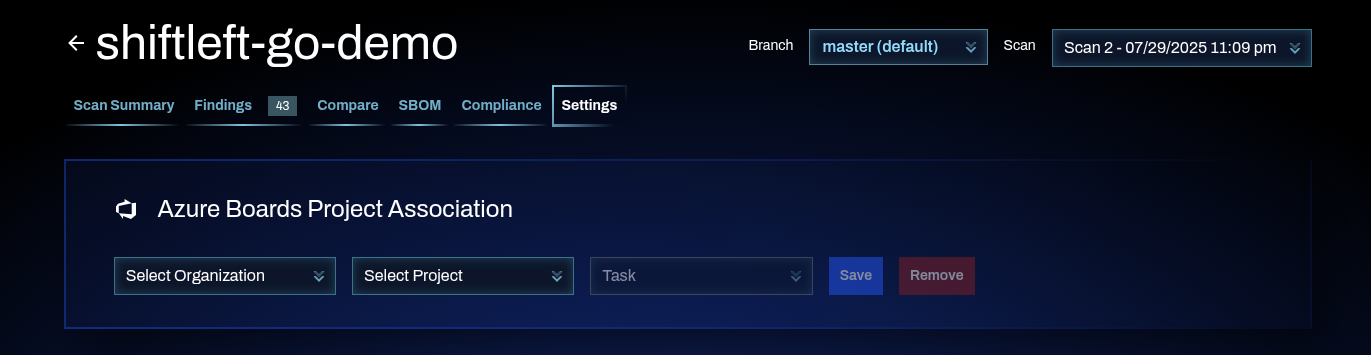

Associate Azure project

To associate an Azure project, please follow these steps:

  • Select the Organization from the dropdown. It will list all the organizations that you have access to.
  • Selecting the organization will allow you to select the Project under that organization.
  • After selecting the Project, you can also specify which work item type should be used for creating work items from the dropdown.
  • Click Save.

These configurations can be updated later and will be applicable on further finding associations.

Step 3: Assign a finding to Azure Boards

After successful project association, you will get an option on the Qwiet finding's page to assign the finding to Azure Boards. Select any Qwiet finding and click the Assign To Azure button.

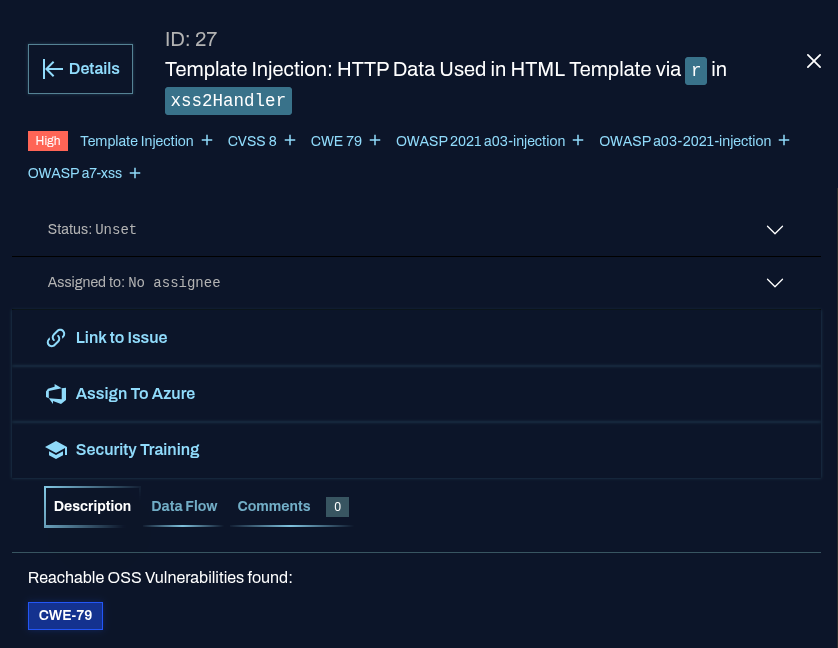

Submit finding to Azure

Step 4: Navigating between Azure Boards and Qwiet

Once you've successfully submitted a finding to Azure, you'll see the newly created finding in Azure Boards:

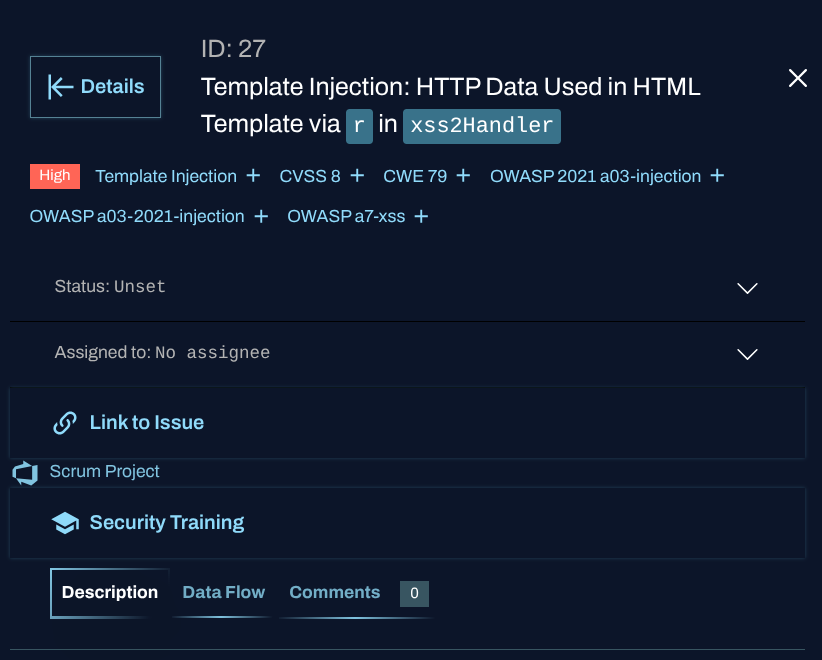

Submitted finding Azureboard workitem

Organization roles

There are different permission scopes assigned to organization roles. These scopes can also be used to create custom roles.

RoleScope
Guestazureboard_workitem:read
Memberazureboard_association:read, azureboard_workitem:read, azureboard_workitem:write
Team Developerazureboard_association:read, azureboard_workitem:read, azureboard_workitem:write
Collaboratorazureboard_association:read, azureboard_workitem:read, azureboard_workitem:write
Power Userazureboard_auth:write, azureboard_association:write, azureboard_association:read, azureboard_workitem:read, azureboard_workitem:write
Super Adminazureboard_auth:write, azureboard_association:write, azureboard_association:read, azureboard_workitem:read, azureboard_workitem:write
Team Managerazureboard_auth:write, azureboard_association:write, azureboard_association:read, azureboard_workitem:read, azureboard_workitem:write

Scope definition

ScopeUsage
azureboard_workitemUsed for Azure work item access/creation
azureboard_associationUsed for Azure board project association
azureboard_authUsed for authorization with Azure Boards
